MODEL

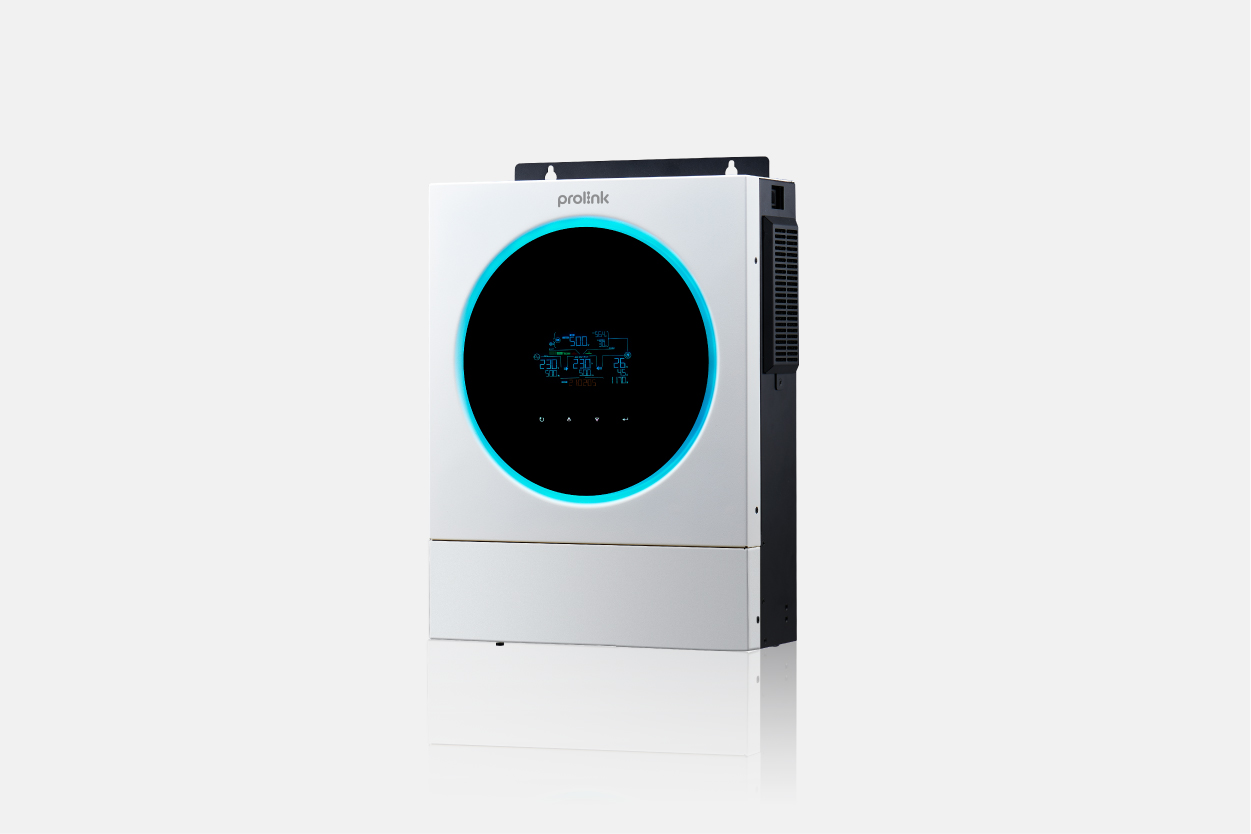

Haus VM IV 3.6KM-24
GENERAL
| Rated Power | 3600VA / 3600W |
| Dimension | 115 x 300 x 400mm (D x W x H) |
| Net Weight (kgs) | 9 |
| Communication Interface |
USB / RS232 / RS485 / WiFi / Dry-contact |
INPUT
| Voltage | 230VAC |
| Selectable Voltage Range | 170 ~ 280 VAC (For Personal Computers)
90 ~ 280 VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
OUTPUT
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power |
7200VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers)
20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
BATTERY
| Battery Voltage | 24 VDC |
| Floating Charge Voltage | 27 VDC |
| Max Charge Voltage | 31.5 VDC |
| Overcharge Protection | 33 VDC |
SOLAR & AC CHARGER
| Solar Charger Type |
MPPT |
| Maximum PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 100 A |
| Maximum Charge Current | 120 A |
Haus VM IV 5.6KM-48
GENERAL
| Rated Power | 5600VA / 5600W |
| Dimension | 115 x 300 x 400mm (D x W x H) |
| Net Weight (kgs) | 10 |
| Communication Interface |
USB / RS232 / RS485 / WiFi / Dry-contact |
INPUT
| Voltage | 230VAC |
| Selectable Voltage Range | 170 ~ 280 VAC (For Personal Computers)
90 ~ 280 VAC (For Home Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
OUTPUT
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Surge Power |
11200VA |
| Efficiency (Peak) | 90% ~ 93% |
| Transfer Time | 15 ms (For Personal Computers)
20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
BATTERY
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Max Charge Voltage | 62 VDC |
| Overcharge Protection | 66 VDC |
SOLAR & AC CHARGER
| Solar Charger Type |
MPPT |
| Maximum PV Array Power | 6000W |
| MPPT Range @ Operating Voltage | 120 ~ 450 VDC |
| Maximum PV Array Open Circuit Voltage | 500 VDC |
| Maximum Solar Charge Current | 120 A |
| Maximum AC Charge Current | 100 A |
| Maximum Charge Current | 120 A |
