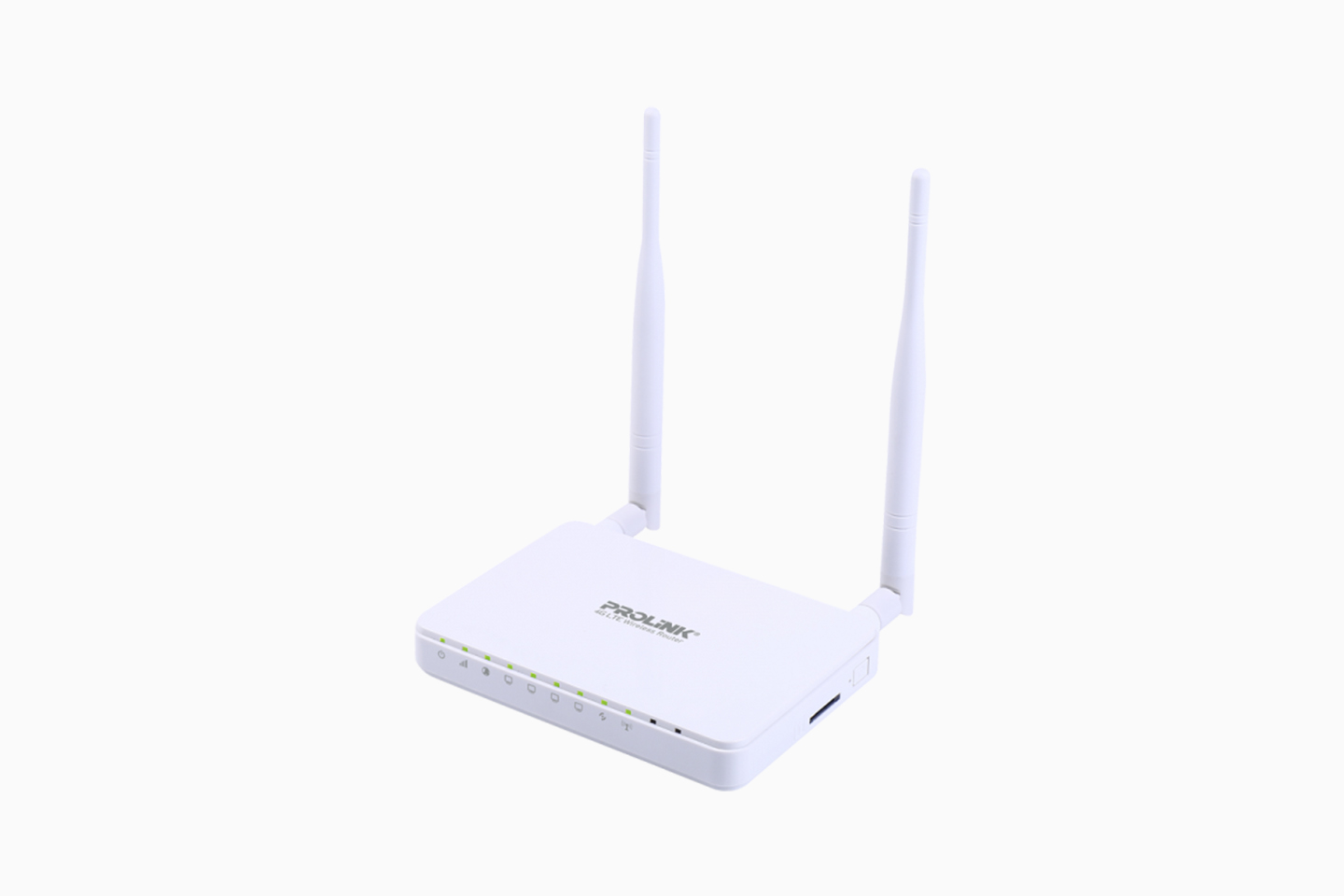

PRN3003L

4G LTE Wireless Router

Specifications

4G Data Connection

Experience fast 4G LTE speeds with your 4G SIM card.

Automatic Network Selection (Auto-APN)

Connects to GPRS/EDGE/HSPA/HSPA+/LTE networks automatically without any configuration.

300Mbps High-Speed Wireless

Up to 300Mbps 2T2R MIMO Wireless Technology delivers greater throughput and performance Ideal for video streaming, online gaming or internet surfing.

Simple & Easy Setup

Supports WPS configuration via a 1-push button.

SMS

Support the usage of sending/receiving text messages; obtaining the main/data balance/validity instantly by sending the USSD codes to your service provider.

Depends on the subscription plan of respective SIM card. SMS charges are applicable.

Specification
download

Technical specifications

Wi-Fi	2.400 - 2.4835GHz Frequency Band IEEE802.11b/g/n WPS supported
Receiver Band	LTE FDD: 800MHz (Band 20)/ 850MHz (Band 5)/ 900MHz (Band 8) 1800MHz (Band 3)/ 2100MHz (Band 1)/ 2600MHz (Band 7) LTE TDD: 2300MHz (Band 40)/ 2600MHz (Band 38) UMTS: 900MHz (Band 8)/ 2100MHz (Band 1) GSM/GPRS/ EDGE: 850/ 900/ 1800MHz
Data Rate	LTE FDD (Cat4): DL 150Mbps, UL 50Mbps
Antenna	Wi-Fi Internal Antenna; 4G 360-degree Omni-directional External Antenna
LED	Power, 4G Network Status, Internet Connection Status, LAN Status, WPS and WiFi Status
Power Adapter	Input: 100~240V, 50Hz~60Hz; Output: 12VDC / 1A

Dimension & Weight

Dimension	142 x 98 x 20mm (L x W x H)
Weight	~235g (product only)

Package Content

1 x PRN3003L 4G LTE Wireless-N Router

1 x Power Adapter

1 x RJ45 cable

1 x Quick Installation Guide (QIG)

certifications

DOWNLOAD

Document	Date	Version
Datasheet 1 file(s) 1,019.15 KB Download	2015-01-31	1.00
Quick Installation Guide 1 file(s) 1.44 MB Download	2015-01-31	1.00
