MODEL
PRO801-HRL 1KVA
GENERAL
| UPS Type | Rack / Tower |
| Phase | Single phase with ground |
| Rating (VA) | 1000 |
| Nominal Power (W) | 900 |
|
Dimension (mm) |
450 x 438 x 86 [2U] (D x W x H) |
| Weight (kg) | 8 |
INPUT
| Connection Type | IEC 320-C14 |
| Nominal Voltage | 230 VAC |
| Voltage Range | 160-300 VAC @100% load
110 VAC @ 60% load (Derating) |
| Frequency Range | 40Hz ~ 70Hz |
| Power Factor | ≧0.99 @ nominal voltage (100% load) |
OUTPUT
| Connection Type | 6 x IEC 320-C13 |
| Nominal Voltage | 220/230/240 VAC (Selectable) |
| Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz / 60Hz ± 0.1% |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≦3% THD (Linear load)
≦6% THD (Non-linear load) |
ALARM & INDICATORS
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| LCD | Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault |
CONNECTIVITY, CONTROL & MONITORING
| Front panel | Status LED, Function keys, LCD display |
| Communication | Smart RS232*
USB Port Emergency Power Off (EPO) |
EXTERNAL BATTERY PACK
|
Cell Type |
LiFePO4 |
| Battery Capacity |
50Ah (LIO 4805) 100Ah (LIO 4810) |
| Continuous Discharge Current |
75 A (LIO 4805) 150 A (LIO 4810) |
|
Max Charging Current Per Pack |
50A (1C) (LIO 4805) 150A (1C) (LIO 4810) |
| Charging Voltage | 52.5 V |
| Dimension (D x W x H) (mm) |
630 x 438 x 86 (LIO 4805) 630 x 438 x 133 (LIO 4810) |
| Net Weight (kgs) |
28.2 (LIO 4805) 48.5 (LIO 4810) |
REAR PANEL
|
PRO802-HRL 2KVA
GENERAL
| UPS Type | Rack / Tower |
| Phase | Single phase with ground |
| Rating (VA) | 2000 |
| Nominal Power (W) | 1800 |
|
Dimension (mm) |
500 x 438 x 86 [2U] (D x W x H) |
| Weight (kg) | 8.8 |
INPUT
| Connection Type | IEC 320-C20 |
| Nominal Voltage | 230 VAC |
| Voltage Range | 160-300 VAC @100% load
110 VAC @ 60% load (Derating) |
| Frequency Range | 40Hz ~ 70Hz |
| Power Factor | ≧0.99 @ nominal voltage (100% load) |
OUTPUT
| Connection Type | 6 x IEC 320-C13 |
| Nominal Voltage | 220/230/240 VAC (Selectable) |
| Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz / 60Hz ± 0.1% |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≦3% THD (Linear load)
≦6% THD (Non-linear load) |
ALARM & INDICATORS
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| LCD | Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault |
CONNECTIVITY, CONTROL & MONITORING
| Front panel | Status LED, Function keys, LCD display |
| Communication | Smart RS232*
USB Port Emergency Power Off (EPO) |
EXTERNAL BATTERY PACK
|
Cell Type |
LiFePO4 |
| Battery Capacity |
50Ah (LIO 4805) 100Ah (LIO 4810) |
| Continuous Discharge Current |
75 A (LIO 4805) 150 A (LIO 4810) |
|
Max Charging Current Per Pack |
50A (1C) (LIO 4805) 150A (1C) (LIO 4810) |
| Charging Voltage | 52.5 V |
| Dimension (D x W x H) (mm) |
630 x 438 x 86 (LIO 4805) 630 x 438 x 133 (LIO 4810) |
| Net Weight (kgs) |
28.2 (LIO 4805) 48.5 (LIO 4810) |
REAR PANEL
|
PRO803-HRL 3KVA
GENERAL
| UPS Type | Rack / Tower |
| Phase | Single phase with ground |
| Rating (VA) | 3000 |
| Nominal Power (W) | 2700 |
|
Dimension (mm) |
500 x 438 x 86 [2U] (D x W x H) |
| Weight (kg) | 9.7 |
INPUT
| Connection Type | IEC 320-C20 |
| Nominal Voltage | 230 VAC |
| Voltage Range | 160-300 VAC @100% load
110 VAC @ 60% load (Derating) |
| Frequency Range | 40Hz ~ 70Hz |
| Power Factor | ≧0.99 @ nominal voltage (100% load) |
OUTPUT
| Connection Type | 6 x IEC 320-C13 + 1 x IEC 320-C19 |
| Nominal Voltage | 220/230/240 VAC (Selectable) |
| Voltage Regulation | ±1% |
| Frequency Range (Synchronized Range) | 47 ~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz / 60Hz ± 0.1% |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≦3% THD (Linear load)
≦6% THD (Non-linear load) |
ALARM & INDICATORS
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| LCD | Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault |
CONNECTIVITY, CONTROL & MONITORING
| Front panel | Status LED, Function keys, LCD display |
| Communication | Smart RS232*
USB Port Emergency Power Off (EPO) |
EXTERNAL BATTERY PACK
|
Cell Type |
LiFePO4 |
| Battery Capacity |
50Ah (LIO 4805) 100Ah (LIO 4810) |
| Continuous Discharge Current |
75 A (LIO 4805) 150 A (LIO 4810) |
|
Max Charging Current Per Pack |
50A (1C) (LIO 4805) 150A (1C) (LIO 4810) |
| Charging Voltage | 52.5 V |
| Dimension (D x W x H) (mm) |
630 x 438 x 86 (LIO 4805) 630 x 438 x 133 (LIO 4810) |
| Net Weight (kgs) |
28.2 (LIO 4805) 48.5 (LIO 4810) |

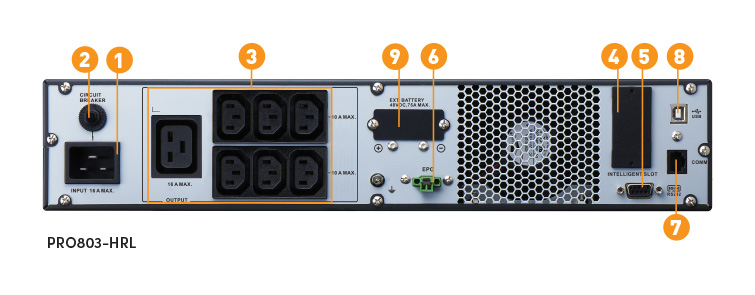

REAR PANEL
|
